Be.Smart T4R – smarter MEP workflows and full Revit 2026 compatibility

Key improvements for smarter MEP workflows

Developed by ARKANCE, Be.Smart T4R empowers Revit users with advanced tools that cut repetitive tasks and enhance project efficiency. The latest release adds features and refinements that make MEP modeling more efficient, accurate, and easier to manage.

Here’s a closer look at what’s new:

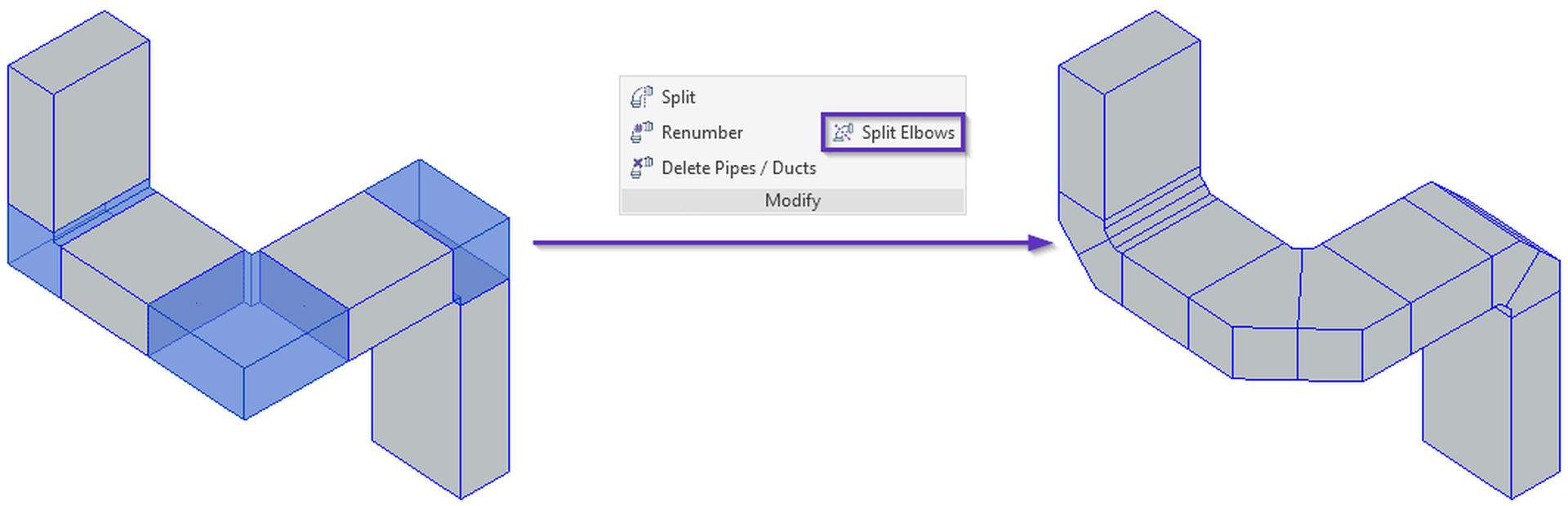

• Split Elbows: A new feature that lets you select any pipe or duct elbow and split it into two equal-size elbows. For example, a 90° elbow becomes two 45° elbows. This makes routing more flexible and helps reduce rework in complex MEP layouts.

• Move & Join: One more new feature in T4R. It allows you to align and connect two MEP elements in a single action. The first selected element remains fixed, while the second moves into alignment. After alignment, both elements are automatically joined into one continuous duct or piping system.

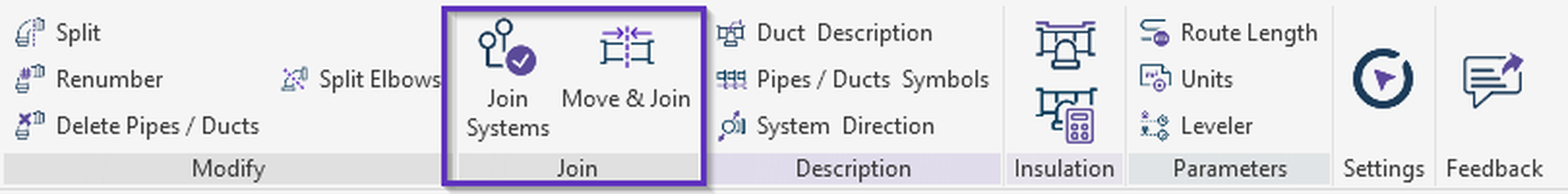

• Join Systems: Previously known as “Element Connector,” this tool now appears alongside Move & Join in the new Join group on the Revit toolbar. Join Systems connects touching MEP connectors into a single system without moving them, while Move & Join can also adjust positions as needed.

• Extended Filter: Save, edit, and manage filters with more flexibility. Dropdown menus make it easier to handle complex views.

• Unhide Hidden Elements: Displays a clear toggle list of hidden elements, making visibility control simpler.

• Level Manager Upgrade: Now includes an Apply button, an editable list view, automatic plan view creation, sorting by elevation, and quick actions to duplicate, remove, or open views. Level heights now reference the Project Base Point correctly. These changes improve clarity and cut down on repetitive setup work.

• Job Time Tracker: Improved formatting makes reporting and data handling simpler.

• Structure Description: Enhanced clarity and behavior, with checkbox support for managing multiple floors..

• BIMSign: Now includes password reset functionality for greater convenience.

Bug Fixes

Alongside new features, this release includes a series of fixes and stability improvements. These updates focus on making T4R more reliable and consistent across different workflows and Revit versions.

• Family Parameter Manager: Fixed an issue with missing underscores in parameter names.

• Hide Features: Fixed a problem where settings weren’t saved after a Revit restart.

• Coordinates Tool: Improved stability, corrected values, and removed misleading messages.

• Renumber Tool: Fixed an issue that occurred when starting with a fitting.

• Licensing Status: Resolved inconsistencies in license status across different Revit versions.

• Help Links: All F1 links now redirect correctly to the online T4R documentation

• Additional minor fixes improve overall usability and stability.

Ready for Revit 2026

With this update, Be.Smart T4R tools are now fully compatible with Autodesk® Revit® 2026, as well as 2025, 2024, and 2023.

T4R is available in two versions:

• Free version – A selection of core design management tools available to all Revit users.

• Extended package – Exclusive for ARKANCE customers, offering the full range of productivity-enhancing tools.

For details on all available tools, visit our technical documentation portal:

Step into smarter workflows

This release marks a step forward in how MEP engineers and designers interact with Revit – bringing automation, accuracy, and simplicity to everyday tasks.

Download the latest version, explore the new and improved tools, and see how these enhancements can accelerate your workflow and reduce errors.

Your feedback matters.
Try it today and let us know what makes your work easier – your insights drive the next generation of Be.Smart T4R.
